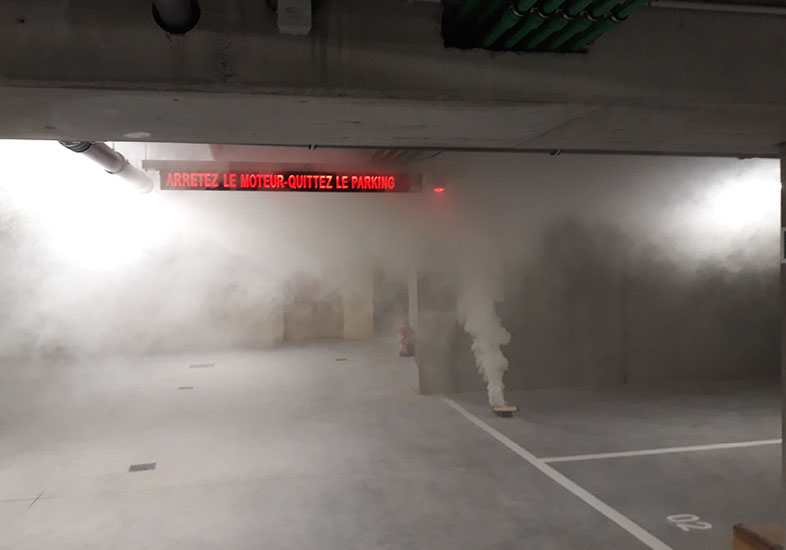

The evacuation system is automatically started when a too high CO level is reached or a fire is detected in the parking garage.

The evacuation system must also work in the event of a confirmed fire detection (two detectors that are in an alarm position).

It consists of text boards, flash lamps and sirens. The signage signs can be arranged in such a way that a viewing distance of 30 m is always achieved.

TEXTBOARDS

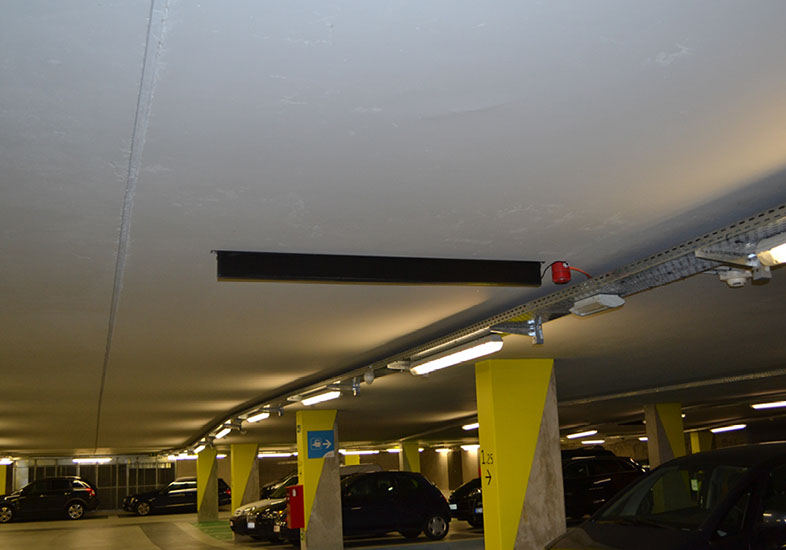

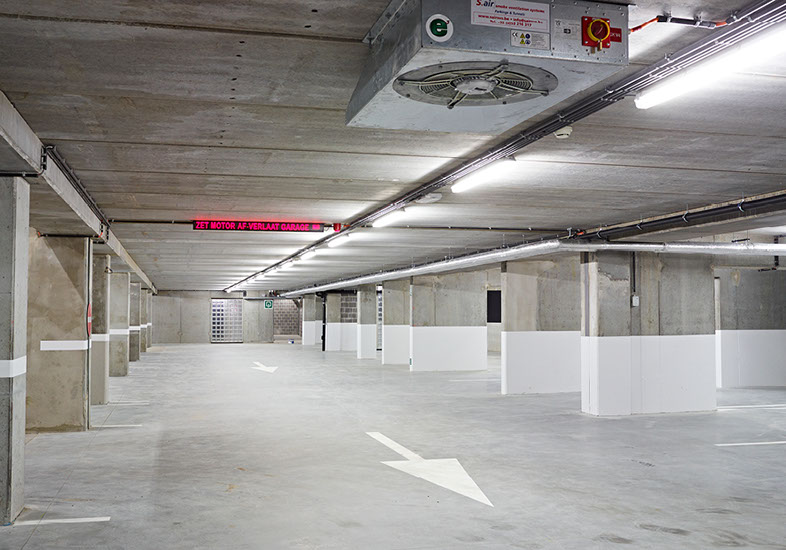

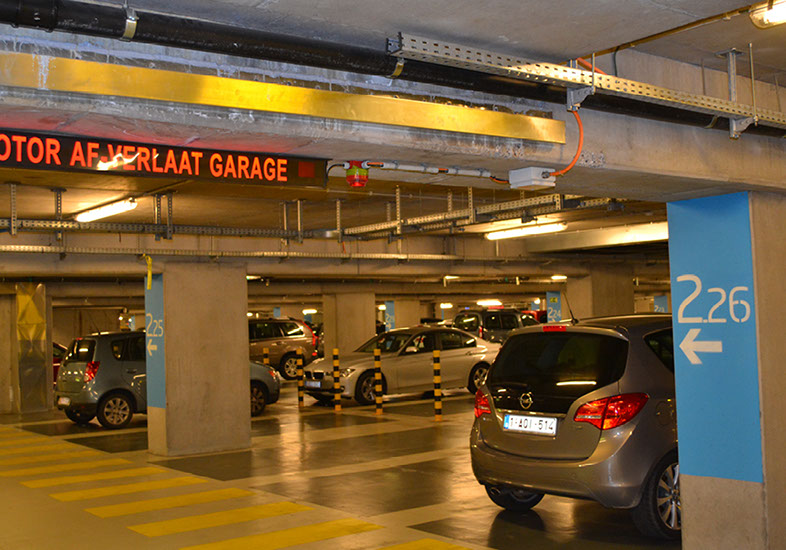

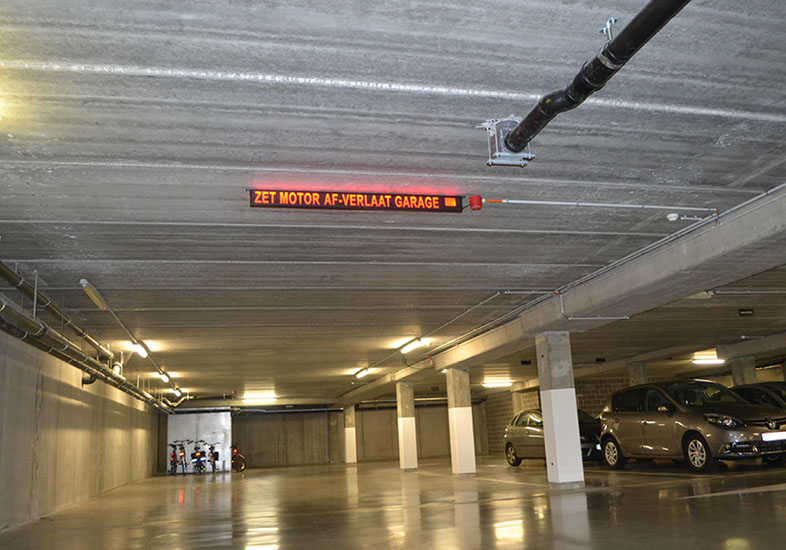

The text boards have been specially developed for parking garages.

This centrally powered signage luminaire is provided with a black text plate, whereby the red text only becomes visible when it is switched on. With 8 cm high letters ...

SIRENE FLASH LIGHTS

The siren flashlights must be placed next to the text signs (see above) to start a fast and insured evacuation in case of a CO and / or fire alarm.

The signal for this is taken directly from the main board after the intervention of the fire panel. The sirens develop a sound level at 1 meter of 101 dB (A).

The flashlights are equipped with a red built-in LED to get a clear optical signal and are used as an addition to the acoustic alarm devices if the background noise in the parking lot is too high.
